When working with aluminum extrusion, most people focus on frame design, profile size, or layout. But the real difference between a solid build and a frustrating one often comes down to something smaller:
The aluminum extrusion connectors you choose.
Not all T slot fasteners are created equal. Some are built for strength. Others focus on speed, adjustability, or keeping slots open for future changes. Choosing the wrong T slot hardware can lead to weak joints, blocked access, or extra work later on.
This guide breaks down the most common aluminum extrusion connectors, when to use each one, and how to choose the right hardware for your application.
Table of Contents (Jump to a Section)
About Aluminum Extrusions | Why Connectors Matter More | The Most Common Connectors | Quick Connectors | Gusset Brackets | Bolt Connectors | Hidden Connectors | Additional T-Slot Hardware | Panel Inserts | Hinges, Handles and Accessories | Comparison Tables | Strength vs. Flexibility | Choosing the Right Connectors | Common Mistakes | Bringing it All Together | Need Help Choosing? | Additional Resources | FAQ
About Aluminum Extrusion Profiles
Aluminum extrusion profiles serve as the building blocks of any t slot system, offering a strong, lightweight, and modular framework for countless applications. Crafted from high-quality aluminum, these profiles are engineered for durability and precision, ensuring that every connection is secure and every structure is stable. Available in a variety of shapes—including square, rectangular, and round—aluminum extrusion profiles can be tailored to fit the unique requirements of your project.
The T-shaped extrusions, or T slots, are a key feature of these profiles, providing the channels needed to accept t nuts, bolts, and other components. This design makes it easy to assemble, adjust, and expand your system as needed. To complete a build, additional components such as leveling feet, end caps, and specialized nuts can be integrated seamlessly, enhancing both functionality and appearance. Whether you’re constructing a machine frame, a workbench, or a custom enclosure, aluminum extrusion profiles offer the flexibility and quality needed to bring your ideas to life—quickly, easily, and reliably.
Explore aluminum extrusion profiles
Why Aluminum Extrusion Connectors Matter More Than You Think
Aluminum framing systems are popular because they are modular, adjustable, and easy to assemble. But those benefits depend heavily on the connectors holding everything together.
In most applications, your decision comes down to:
- How strong the joint needs to be
- How often the structure will change
Some T-slot fasteners create permanent, high-strength joints. Others allow for quick adjustments and reconfiguration. Some keep the T slot open for panels and accessories, while others block it completely.
Understanding these tradeoffs early helps you avoid redesigns, rework, and downtime later.
Explore Aluminum Extrusion Connectors and Fasteners
The Most Common Aluminum Extrusion Connectors
Below are the most widely used T slot fasteners—and where each one fits best. Let’s break them down.

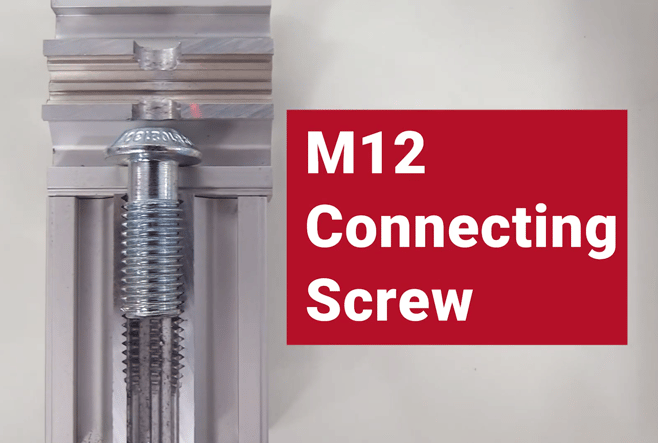

1. M12 Connecting Screws: Clean, Internal T Slot Fasteners for Fixed Joints
M12 screws are one of the most common aluminum extrusion connectors used for clean, internal joints. The name “M12” refers to the metric thread size of the fastener, though the exact connector design can vary by manufacturer. Because they sit inside the profile, they don’t interfere with the outer T slot, making them ideal when you need to keep slots open.
These T slot fasteners are best suited for builds that are not expected to change frequently. Once installed, they provide a strong, stable connection—but are not as easy to adjust later.
Best for:
- Permanent or semi-permanent builds
- Applications requiring open T slots for panels or accessories
Pros:
- No obstruction in the T slot
- Strong and vibration-resistant
- Clean, hidden connection
Cons:
- Requires an access hole
- More difficult to adjust after installation
M12 Connector Video Tutorial:

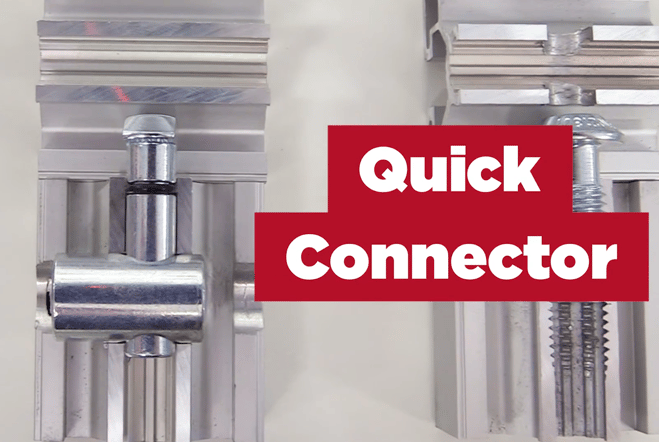

2. Quick Connectors: Adjustable T Slot Hardware for Faster Assembly
Quick connectors are designed for speed and flexibility. These aluminum extrusion connectors allow you to assemble and adjust your frame without fully disassembling sections.
If your design is still evolving, or if changes are expected over time, this type of T slot hardware can save a significant amount of time.
Best for:
- Prototyping or evolving systems
- Applications where assembly speed is important
Pros:
- Fast installation
- Easily adjustable
- No T slot obstruction
Cons:
- Requires a drilled hole
Quick Connector Video Tutorial:

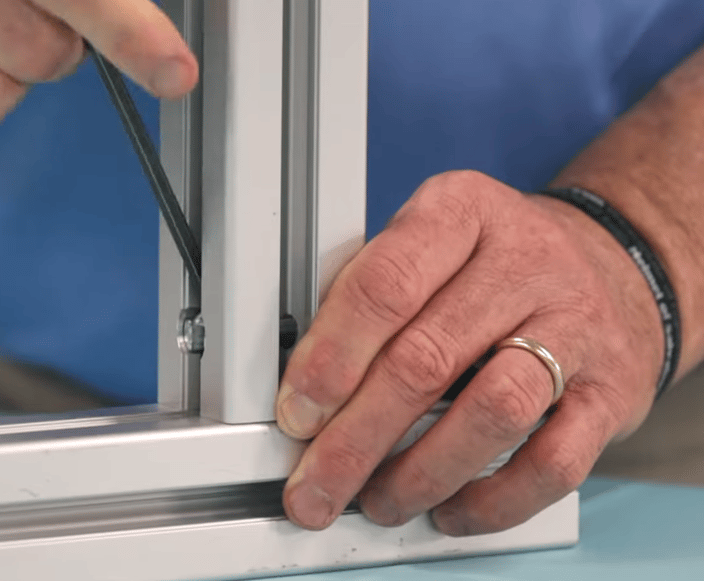

3. Gusset Brackets: Simple and Strong External T Slot Fasteners
Gusset brackets are one of the most straightforward aluminum extrusion connectors. They attach externally and require no machining, making them a great option for quick builds or field assembly.
Because they sit on the outside of the profile, they provide strong reinforcement—but they also block the T slot, which can limit future flexibility.
Best for:
- Quick builds with minimal tools
- Structural reinforcement
- Applications where machining is not available
Pros:
- Strong and durable
- No drilling needed
- Easy to adjust after installation
- Helps maintain alignment and squareness
Cons:
- Blocks T slot access
Gusset Bracket Video Tutorial:

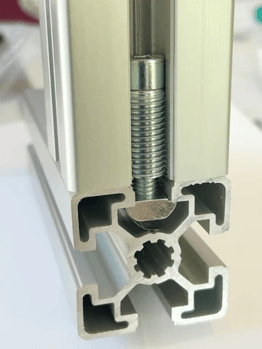

4. Bolt Connectors: High-Strength Aluminum Extrusion Connectors
Bolt connectors are among the strongest T slot fasteners available. They create tight, secure joints that are ideal for load-bearing applications.
While they require pre-drilled holes, the added strength makes them a go-to option when structural performance is critical.
Best for:
- Heavy-duty or load-bearing structures
- Applications where joint strength is a priority
Pros:
- Extremely strong
- Adjustable
- Clean finish with optional covers
Cons:
- Requires pre-drilling
- Slightly more cumbersome than other methods
Bolt Connector Video Tutorial :

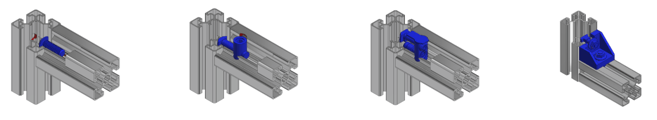

5. Hidden Connectors: Clean, Internal Aluminum Extrusion Connections
Some aluminum extrusion connectors are designed to stay hidden inside the profile. These internal fasteners—often called anchor fasteners—create a clean, flush appearance without external hardware.
They’re useful when space is limited or when panels, guards, or moving parts need a smooth surface. T-Matic connectors are common examples, but other internal options exist depending on the application.
T-Matic Connectors: No-Machining T Slot Hardware for Modular Build
T-Matic connectors are designed to simplify assembly while maintaining flexibility. These aluminum extrusion connectors eliminate the need for machining, making them ideal for fast-paced builds.
They are especially useful in modular systems where reconfiguration is common. Their internal design also keeps the frame looking clean and professional.
Best for:
- Modular systems
- Applications that require frequent adjustments
- Clean, professional-looking builds
- Cleanroom or visible environments
Pros:
- No machining or hole-drilling required
- Fast installation
- Reusable and adjustable
- Hidden, clean design
Cons:
- May require multiple connectors for higher loads

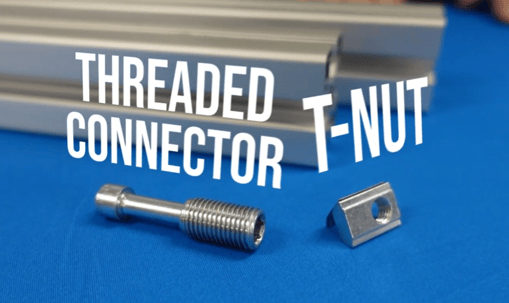

These connectors use a threaded insert and roll-in T nut, allowing for quick assembly while keeping T slots open for panels or accessories.
T-Matic Connector Video Tutorial:
Additional T Slot Hardware to Know:
In addition to aluminum extrusion connectors, a few other types of T-slot hardware help complete most builds.
T Slot Nuts (Roll-In and Drop-In)
T-slot nuts allow you to attach components anywhere along the profile.
- Roll-in T-nuts can be added after assembly
- Drop-in T nuts are inserted from the end
They’re widely used with brackets, panels, and accessories.
Corner Brackets and Joining Plates
These are simple external connection options.
- Corner brackets are common for light-duty framing
- Joining plates help reinforce or span connections
They’re easy to install but may block T slot access.

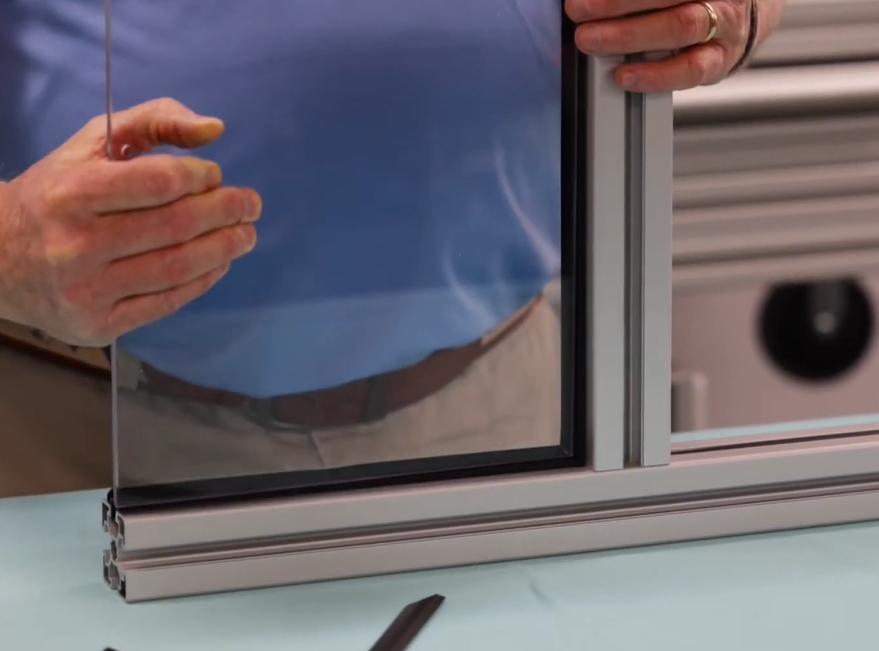

Panel Inserts: Supporting Hardware for Enclosures and Safety
Panel inserts are not structural aluminum extrusion connectors, but they are still an important part of many systems. They allow you to add panels, guards, and enclosures to your frame.
Depending on your needs, you can choose between fixed or adjustable options.
Best for:
- Safety guarding
- Enclosures and barriers
- Cleanroom applications
Options include:
- Fixed panel inserts
- Adjustable panel inserts
Panel Insert Video Tutorial:
Hinges, Handles, and Accessories
These aren’t structural connectors but are commonly used in extrusion systems.
- Hinges for doors and panels
- Handles and latches
- Mounting accessories
They attach using standard T slot hardware and help complete the system.
Shop All aluminum extrusion accessories
Aluminum Extrusion Connector Comparison Table
Now that you’ve seen how each aluminum extrusion connector works, here’s a side-by-side comparison to help you choose the right option.
|
Connection Method |
Type |
Strength |
Adjustability |
Assembly Speed |
Machining Required |
Slot Access |
Best Use Case |
|
M12 Screw |
Internal (Hidden) |
High |
Low |
Medium |
Yes (access hole) |
Open |
Fixed structures where clean design and slot access matter |
|
Quick Connector |
Internal |
Medium-High |
High |
Fast |
Yes (drilled hole) |
Open |
Projects that need flexibility and quick adjustments |
|
Gusset Bracket |
External |
High |
Medium |
Fast |
No |
Blocked |
Simple builds and structural reinforcement without machining |
|
Bolt Connector |
Internal |
Very High |
Medium |
Medium |
Yes (pre-drilled) |
Open |
Load-bearing joints where strength is critical |
|
T-Matic Connector |
Internal (Hidden) |
Medium-High |
High |
Very Fast (with drill) |
No |
Open |
Modular systems that require speed and future changes |
|
Panel Inserts |
Accessory (Non-Structural) |
N/A |
Medium |
Fast |
No |
N/A |
Enclosures, safety guards, and panel applications |
Strength vs. Flexibility: Choosing the Right T Slot Fasteners
In essence, every aluminum extrusion connector falls somewhere between two priorities:
💪 Maximum strength:
- Bolt connectors
- Gusset brackets
✨Maximum flexibility:
- Quick connectors
- T-Matic connectors
There is no single best option—only the best fit for your application.
Before selecting your T slot hardware, ask:
- Will this system need to change later?
- Do I need access to the T slot?
- How important is assembly speed?
- What load will this joint carry?
How to Choose the Right Aluminum Extrusion Connectors
Choosing the right aluminum extrusion connectors doesn’t have to be complicated. Most decisions come down to a few key factors: strength, flexibility, appearance, and how the system will be assembled.
Use this quick guide to narrow down your options:
Need maximum strength?
Go with bolt connectors or gusset brackets for load-bearing applications.
Need flexibility or future changes?
Quick connectors and T-Matic connectors make adjustments easy.
Need a clean, low-profile design?
M12 screws or other hidden connectors keep hardware out of sight.
No machining available?
Gusset brackets and T-Matic connectors can be installed without drilling or tapping.
Need to keep T slots open?
Avoid external brackets and use internal connectors like M12 or quick connectors.
Every application is different, but starting with these questions will help you choose the right T-slot fasteners with confidence.
Common Mistakes When Choosing Aluminum Extrusion Connectors
Even though aluminum extrusion is easy to work with, choosing the wrong connector can create problems.
🚫 Welding the extrusion
Welding removes flexibility and defeats the purpose of a modular framing system.
🚫 Choosing the wrong priority
Focusing only on strength or only on adjustability can lead to issues later.
🚫 Blocking future access
Some T-slot fasteners limit your ability to add panels or accessories down the line.
Bringing It All Together
Aluminum extrusion connectors do more than hold your frame together—they determine how your system performs over time.
The right T slot fasteners help you:
- Build faster
- Reduce rework
- Maintain flexibility
- Ensure long-term reliability
The wrong choice can limit your design and slow your project down.
Need Help Choosing with Aluminum Extrusion?
While other sellers may offer similar products, it’s important to select a supplier known for quality components, excellent customer support, and competitive pricing. The right combination of T-slot extrusions, leveling feet, end caps, and accessories will help you build robust, professional-grade structures that stand the test of time—no matter the size or complexity of your project.
Airline Hydraulics has been designing and building aluminum framing systems since 1992. Whether you’re starting from scratch or improving an existing system, our team can help lead you down the right path.
