Understanding Arc Flash Hazards: Prevention and Protection Strategies

Editors note: This article was updated in April 2026 to expand on key topics

An arc flash can turn routine electrical work into a life-threatening event in less than a second. When an electrical explosion releases temperatures exceeding 35,000°F—roughly four times hotter than the sun’s surface—the consequences for unprotected workers are devastating. Understanding these hazards and implementing effective prevention strategies isn’t just good practice; it’s essential for protecting everyone who works around electrical equipment.

This guide breaks down everything you need to know about arc flash events, from the physics behind them to practical steps for reducing risk at your facility.

Skip to a Section

What is Arc Flash? | Anatomy of an Arc Flash Incident | Identifying Arc Flash Risks: Reviewing Past Case Studies | Common Causes of Arc Flash Incidents | NFPA 70E and OSHA Regulations | Comprehensive Arc Flash Study | Types of Arc Flash Analysis | Arc Flash Mitigation  | Electrical Safety Training for Arc Flash Mitigation | Guide to Products  | Frequently Asked Questions

What is Arc Flash?

An arc flash is an electrical explosion that occurs when electrical current deviates from its intended path and travels through ionized air between conductors or to ground. This can happen when an uncontrolled arc forms due to accidental contact, dropped tools, insulation failure, contamination like dust, corrosion, or wiring errors.

The difference between arc flash and arc blast is important. Arc flash refers specifically to the intense light and heat energy released during the event. Arc blast encompasses the accompanying pressure wave created by rapidly expanding gases, sound exceeding 140 dB (louder than a jet engine), and the molten metal spray and shrapnel propelled at high velocities.

The numbers are staggering: core temperatures can reach 35,000°F, sufficient electrical energy to vaporize copper conductors whose volume then expands tens of thousands of times. These arc flash events typically occur in switchgear rooms, motor control centers, panelboards, substations, and industrial control cabinets operating from 208V up to 15kV and higher.

Perhaps most alarming is how quickly an arc flash develops. The entire sequence—from arc fault initiation to explosive release—unfolds in fractions of a second, often during routine tasks like switching circuit breakers, opening panel doors, or using test probes on live systems.

Learn more about arc flash in Eaton's whitepaper, "What You Need to Know About Arc Flash."

Anatomy of an Arc Flash Incident

Here’s what happens in rapid succession:

1. Fault initiation from contact, equipment failures, or insulation breakdown
2. Air ionization as voltage overcomes the dielectric strength of air
3. Arc formation through sustained plasma discharge
4. Temperature spike to over 20,000°C in the arc column
5. Metal vaporization with copper expanding 67,000 times in volume
6. Gas expansion generating a thermoacoustic shock wave
7. Pressure buildup ejecting plasma, shrapnel, and debris

Even with short clearing times of 3–6 cycles on a 60Hz electrical system, incident energies can exceed 40 cal/cm² at typical working distances—enough for fatal third-degree burns.

The Electric Arc Explained

An electric arc is a sustained plasma discharge of ionized gas, similar in principle to lightning or welding arcs. Under normal conditions, air acts as an insulator with a dielectric strength of about 3kV/mm. However, this breakdown voltage can be overcome by high system voltages, insulation degradation, dust bridging between conductors, or tight spacing.

Once an arc develops, a dangerous positive feedback loop begins. The intense heat lowers air resistance, which boosts current flow, further increasing the arc temperature increases until protective devices finally trip. In AC systems from 208V to 15kV, IEEE 1584 models this arc behavior accounting for gap length, enclosure geometry, and electrode configuration.

The critical difference between intentional arcs in welding (short, controlled) and unintentional power system arcs lies in duration and energy. In switchgear, bus ducts, or terminations, miscoordinated relays or slow fuses allow arcs to persist, amplifying the energy released exponentially.

Heat Energy and Its Dangers

Incident energy, measured in cal/cm² at working distances like 18 inches, quantifies the thermal hazard from an arc flash source. Just 1.2 cal/cm² can cause a second degree burn, while 40 cal/cm²—common in high-power tests—is sufficient for fatal third-degree burns.

The heat energy involved is extraordinary:

Unprotected workers face ignition of cotton and nylon fabrics. Synthetic materials are particularly dangerous because they melt onto skin, causing severe localized burns that are extremely difficult to treat. High energy radiation capable of causing burns can injure bystanders several meters away, especially in open-air configurations.

The Aftermath: Molten Metal and Blast Pressure

When copper, aluminum, and steel vaporize during an arc flash, they form droplets expelled at supersonic speeds alongside shrapnel piercing protective clothing and PPE. The rapid expansion of air and metal vapor generates an explosive force—the pressure wave can reach 100-200 psi internally.

The injuries from this arc blast include:

• Penetrating trauma from flying debris
• Ruptured eardrums from the very bright light and deafening sound
• Lung damage from overpressure
• Concussions and blindness

A typical blast-damaged panel shows warped busbars, vaporized insulation, scattered molten splatter, and buckled doors with failed hinges. Equipment costs from heat, pressure, and smoke contamination can exceed $1M per event when including downtime.

Identifying Arc Flash Risks: Reviewing Past Case Studies

Learning from real arc flash incidents provides invaluable lessons. Documented events from 2000-2025 reveal consistent patterns across industrial plants, utilities, and commercial buildings.

Example – Refinery Maintenance Incident (Late 2000s):
During maintenance on energized 13.8kV equipment without full PPE, a worker suffered severe third-degree burns over a large portion of their body. After months of rehabilitation, total costs exceeded $2M. The root cause was performing live work without proper de-energization.

Example – Electrical Equipment Incident (Mid-2010s):
Improper racking of a 480V MCC circuit breaker caused an arc flash that ejected plasma several feet, injuring two workers with blast trauma and hearing damage. The investigation pointed to bypassed interlocks and the absence of a current arc flash study.

Recurring themes across arc flash occurred events include:

• Working on energized gear without wearing protective clothing
• Ignored warning signs like buzzing or visible damage
• Inadequate labels or outdated studies
• Bypassed safety interlocks



The costs extend beyond immediate injuries: OSHA fines exceeding $150,000, insurance claims, production downtime, and long-term rehabilitation. Statistics indicate over 2,000 annual U.S. burn center admissions from electrical arc flash injuries, with a 1:10 fatality ratio when proper protections aren’t in place.

Understanding NFPA 70E and OSHA Regulations

Compliance with NFPA 70E and OSHA regulations is not just about avoiding fines; it’s about ensuring safety. NFPA 70E provides practical standards for electrical safety practices, while OSHA enforces these standards to promote safe working conditions. Familiarity with these regulations is crucial for creating an effective safety program.

NFPA 70E

NFPA 70E (2024 edition) requires risk assessments for tasks on or near energized electrical conductors and circuit parts operating at 50V and above.

Key requirements include:

 ▶ Shock and arc flash risk assessments

 ▶ Energized work permits (only when de-energization is infeasible)

 ▶ Defined approach boundaries (limited, restricted, arc flash)

 ▶ PPE selection via incident energy analysis or tables

 ▶ Worker training every three years

OSHA

OSHA can cite employers under the General Duty Clause by referencing NFPA 70E as recognized good practice, with violations exceeding $14,000 each. The standard updates on a three-year cycle, requiring facilities to periodically review their electrical safety programs.

The Role of Equipment Labeling and Signage

Properly applied arc flash warning labels help workers quickly identify hazards and required protective equipment before opening electrical equipment. Both NFPA 70E and the National Electrical Code (NFPA 70) require field-applied labels on switchboards, panelboards, MCCs, industrial control panels, and meter sockets likely to require servicing while energized.

Labels must be durable, legible, and placed so they’re visible before opening any door or cover. Updates are required whenever significant system changes occur—new transformers, added generators, or major one-line revisions affecting fault current or upstream circuit breaker coordination.

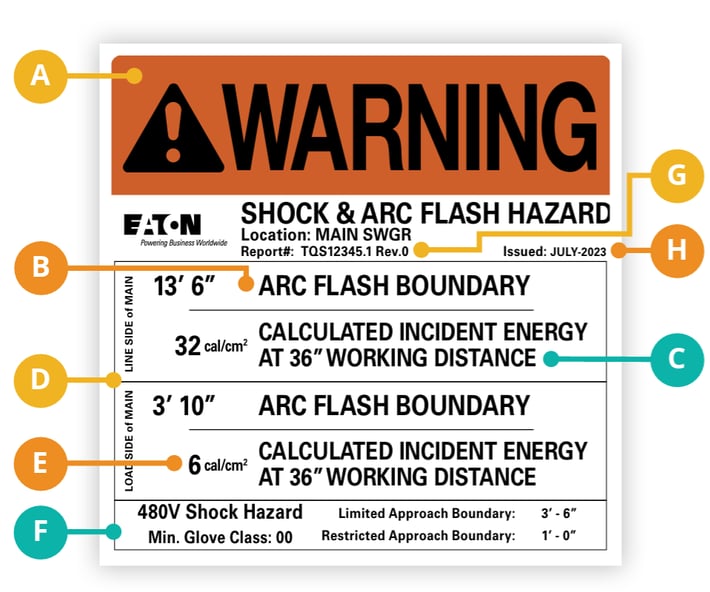

Typical Parts of an Arc Flash Label

A compliant arc flash label follows ANSI Z535 conventions with specific required elements:

Download a PDF of how to read an arc flash warning label in Eaton's flyer, "How to read an arc flash label."

The label should indicate that only qualified persons may work within specific boundaries, with contact information for questions about the analysis.

Mitigation Strategies for Arc Flash: Strategies for Improved Electrical Safety

Effective arc flash hazard management follows the hierarchy of controls: eliminate the hazard where possible, then apply engineering controls, administrative controls, and finally PPE as the last resort.

Reducing incident energy focuses on three factors:

• Lowering fault current through system design
• Shortening fault clearing time via faster protective devices
• Increasing worker distance from potential arc terminals

Design options include current-limiting fuses, circuit breakers with short clearing times, arc-resistant switchgear, and optical detection relays that trip in milliseconds. Administrative methods include task-based risk assessments, energized work permits, switching procedures, and operating equipment remotely when possible.

Reducing Hazard by Design

System design decisions made at the planning stage significantly influence arc flash severity. Consider these approaches:

• Smaller transformers limit short-circuit current (75kVA vs 2MVA can halve incident energy)
• Bus clearances exceeding 3 inches per NEC recommendations
• Arc-resistant switchgear that redirects energy away from operators
• Current-limiting fuses that cap let-through energy to under 5 cal/cm²

Under different design approaches, incident energy at main switchgear might be 40+ cal/cm², while the same fault at load-level equipment with proper fusing might be under 4 cal/cm²—a 10x variance based purely on design choices.

Choosing Appropriate Personal Protective Equipment (PPE)

Personal protective equipment is the last line of defense once an arc flash has already begun and should never substitute for de-energizing electrical equipment. Arc ratings measured in cal/cm² correspond to NFPA 70E PPE categories for typical low- and medium voltage equipment tasks.

Core PPE items include:

• Arc-rated shirts, pants, or coveralls
• Flash suits and hoods with balaclavas
• Face shields with chin cups
• Rubber insulating gloves with leather protectors
• Safety glasses and hearing protection
• Dielectric footwear



PPE selection must be based on either maximum incident energy resistance analysis or NFPA 70E task tables applied within their limits. All equipment requires inspection before use and replacement once damaged.

Arc Flash PPE Categories and Examples

NFPA 70E defines four PPE categories with minimum arc rating requirements:

Using PPE rated above the calculated incident energy adds safety margin but shouldn’t encourage riskier work practices. Comfort and mobility affect worker compliance—which is why right-sizing PPE and proper safety training are crucial. Heat stress reduces adherence by up to 30% without adequate training on proper wear.

Implementing Electrical Safety Standards

A written Electrical Safety Program (ESP) is central to applying NFPA 70E-2004 and OSHA requirements in practice. This document establishes the framework that protect personnel working on electrical systems.

Core ESP contents include:

• Roles and responsibilities for all personnel
• Training requirements including 40-hour classroom plus on-the-job mentoring
• Procedures for establishing electrically safe work conditions
• Documentation processes for all work activities
• Job briefings covering hazards, procedures, PPE, and emergency response



Leadership commitment makes the difference. Supervisors must model correct behavior and hold teams accountable. Periodic retraining—typically every three years—keeps knowledge current as standards evolve.

Engineering Controls and Maintenance

Engineering solutions provide reliable arc flash protection by addressing the hazard at its source:

• Zone selective interlocking protection for faster isolation
• Differential protection on medium voltage equipment
• High-resistance grounding to limit arc current (ground faults self extinguish more readily)
• Ultra-fast earthing switches for rapid fault clearing

Properly coordinated time-current curves can dramatically cut incident energy at key locations. A shorted power transformer with proper coordination might clear in 1-2 cycles versus 50ms with standard breakers.

Regular preventive maintenance remains critical: infrared scans detect 80% of loose connections causing spontaneous arc flashes, while torque checks, insulation resistance testing, and breaker testing per manufacturer intervals prevent equipment failures that lead to phase to phase faults.

For a list of arc flash mitigation strategies, download Download the Arc Flash Eaton Checklist.

Preventive Measures Against Arc Flash Hazards: Maintenance and Training

Preventing arc flash incidents starts long before any task begins, through regular equipment maintenance and continuous worker education. Causes of arc flash often trace back to preventable conditions.

Key preventive maintenance actions:

• Cleaning enclosures to prevent dust bridging
• Torque verification on connections
• Breaker testing and relay calibration
• Thermal imaging surveys (detecting problems before they cause a bright flash)
• Lubrication per manufacturer specs



Essential training covers recognizing arc flash hazards, interpreting labels, selecting PPE, applying lockout/tagout, and verifying absence of voltage with a tripped circuit breaker confirmed de-energized. Drills simulating electrical storms or unexpected equipment behavior prepare workers for real emergencies.

Track metrics like near-misses, equipment failures, and audit findings. OSHA logs indicate 80% of incidents are preventable with proper programs in place.

Types of Arc Flash Analysis

An arc flash analysis (or arc flash study) is a systematic engineering evaluation quantifying incident energy and arc flash hazard zone boundaries across an electrical system.

The IEEE 1584-2018 methodology covers most AC systems between 208V and 15kV, incorporating:

• System configuration and conductor geometry
• Protective device characteristics
• Switching circuits and coordination
• Enclosure effects on arc behavior

Studies involve short-circuit calculations, protective device coordination, incident energy calculations at each location, and generation of labels and reports. For DC systems or voltage phase ranges outside IEEE 1584 scope, alternative methods per NFPA 70E Annex D apply.

Electrical engineers recommend updating studies every 5 years or whenever major modifications occur—loads can drift 10-20% annually, affecting calculated values.

How Are Arc Flash Boundaries Measured?

1. The arc flash boundary is the calculated distance at which a person without arc-rated PPE would receive incident energy equal to 1.2 cal/cm²—the threshold for a second-degree burn onset.


   Boundaries are computed using IEEE 1584 equations based on:

   • Available fault current at the location
   • Protective device clearing time
   • Equipment characteristics and enclosure geometry
   • Conductor gap and configuration


   Different locations on the same system have vastly different boundaries. Main switchgear might have a 5-foot boundary while a small panelboard shows only 1 foot, reflecting variations in high voltages, fault current, and protection speed.

   Unlike shock approach boundaries (limited and restricted) which are voltage-based, arc flash boundaries are energy-based. Both appear on labels and single-line diagrams, and workers must understand how to interpret each.

5.

Collaborative planning makes the difference. Working together to prioritize high-risk equipment (focusing on the top 20% of gear with highest incident energies), schedule maintenance outages strategically, and roll out training to frontline workers reduces risk dramatically—facilities report 30-50% incident reductions through comprehensive audit programs.
