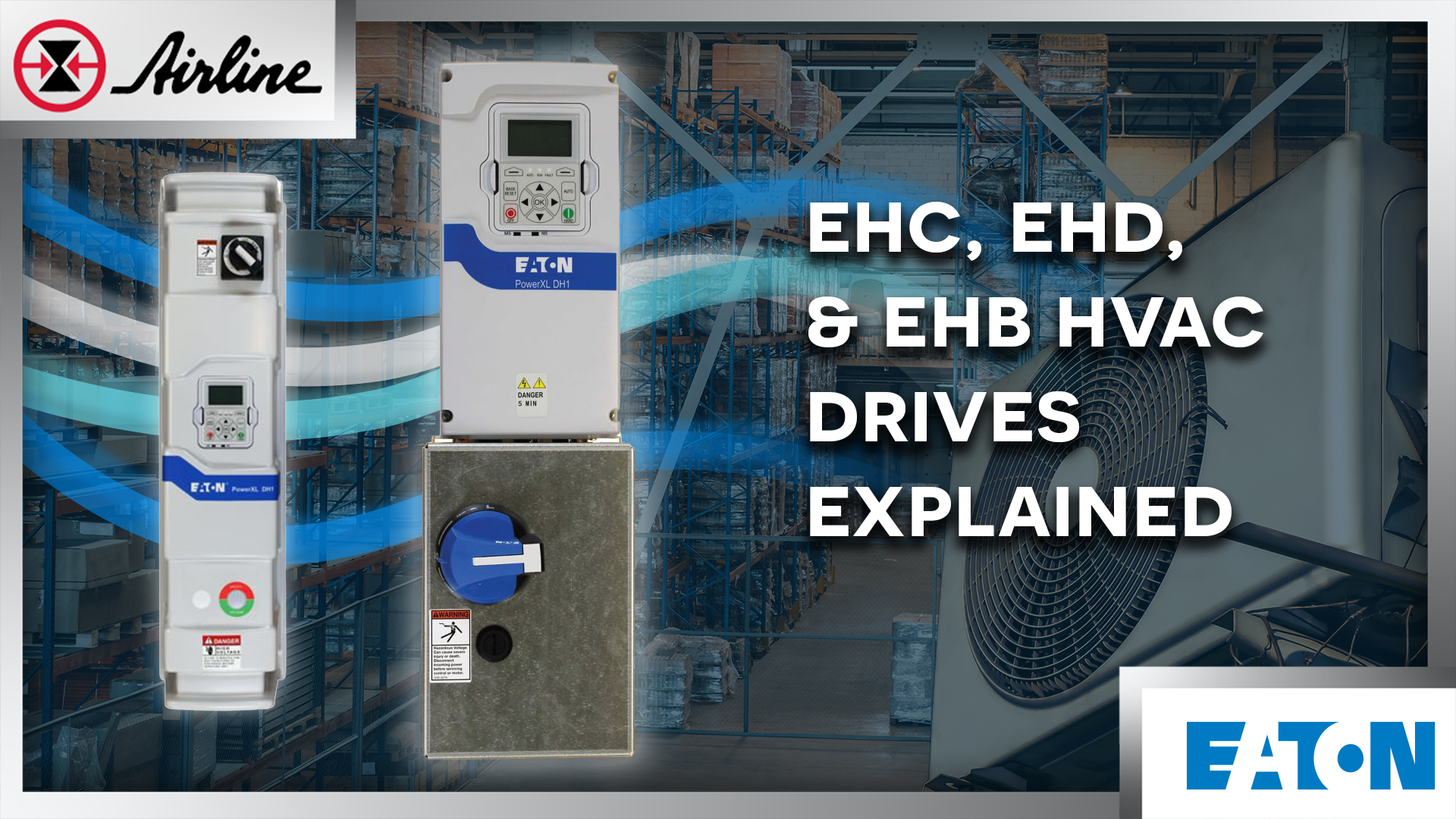

Eaton's DH1 HVAC Drives: EHC, EHD, and EHB Explained

When it comes to powering HVAC systems efficiently and reliably, variable frequency drives (VFDs) are indispensable. Eaton’s enclosed HVAC drives combine robust design, advanced energy-saving algorithms, and easy connectivity to meet the diverse needs of commercial and industrial HVAC applications.

In this post, we’ll dive into the three distinct Eaton HVAC drive styles — EHC, EHD, and EHB — and help you understand which option is right for your project.

Table of Contents (Jump to a Section):

EHC-Compact Disconnective Drive | EHD-Standard Disconnective Drive | EHB-Max Flexibility   Common Innovations Across Eaton's Drives | Let's Get You Started | Additional Resources

EHC — Compact Disconnect Drive: Small but Mighty

The EHC Drive stands for Eaton’s Compact Disconnect Drive, and as the name suggests, it’s the smallest footprint available in Eaton’s enclosed HVAC lineup. Despite its size, it’s engineered to provide plenty of room for field wiring and every essential function HVAC contractors expect:

What sets the EHC apart:

HVAC communication protocols -  Includes support for BACnet IP, Modbus TCP, and more, making integration into building management systems a breeze.

Circuit Breaker Included - Comes with a built-in breaker and 100 kAIC short-circuit current rating as standard, especially when you need short, sharp bursts

Efficient performance - Leverages Eaton's Active Energy Control algorithm for improved energy use

This makes the EHC perfect for smaller AHUs, fan systems, and applications where size and simplicity matter.

EHD — Standard Disconnect Drive: Broader Power Range

The EHD Drive steps up from the EHC by offering a larger physical footprint and expanded power handling for tougher applications.

Key highlights include:

Wider power coverage -  Supports larger motors and HVAC loads, with offerings up to 250 HP in some configurations

Disconnect option standard - Like the EHC, the EHD includes a disconnect for easy maintenance and safer service

Robust feature set — Maintains Eaton’s Active Energy Control, onboard I/O, and built-in protocols such as BACnet/IP and Modbus RTU/TCP

The EHD is ideal for mid-to-large HVAC systems — think larger air handlers, chillers, and pump systems requiring stronger drive capacity without the need for bypass switching.

EHB — Bypass Version: Maximum Flexibility

The EHB drive adds another layer of flexibility with a built-in bypass configuration. This design incorporates two- or three-contactor bypasses that allow the motor to run across the line when needed (bypassing the VFD). That’s especially useful for service, maintenance, or systems that need automatic fallback operation.

EHB key features:

Bypass Capability - Two or three contractor bypass options for increased operational flexibility

Same optimized footprint -  Delivers this functionality while staying comparable in size to Eaton's other HVAC drives

Full HVAC integrations - Built-in communications and Eaton algorithms make the EHB an advanced choice for sophisticated systems

If your application demands high uptime or easy serviceability — such as central plant equipment or critical airflow systems — the EHB offers a smart blend of control and resiliency.

Check out the EHB Bypass Configurations

Common Innovations Across Eaton’s HVAC Drive Range

While each of these Eaton enclosed drives has its own niche, they share several powerful features:

Advanced Energy Optimization -

All three utilize Eaton’s Active Energy Control algorithm, which can improve energy savings compared with baseline VFDs and help reduce operating costs.

Onboard HVAC Communications -

Connectivity matters. Each drive includes support for common building automation protocols such as BACnet/IP, BACnet MS/TP, and Modbus RTU/TCP, enabling seamless integration into modern control systems.
